Husqvarna AUTOMOWER 430XH, AUTOMOWER 450XH - Residential Robotic Lawn Mower Manual

Introduction

The serial number and the product number are on the product rating plate and on the product carton.

• Register your product on www.husqvarna.com. Enter the serial number of the product, the product number and the date of purchase to register your product.

Support

For support about the product, speak to your Husqvarna servicing dealer.

Product description

Note: Husqvarna regularly updates the appearance and function of the products. Refer to Support.

The product is a robotic lawn mower. The product has a battery power source and cuts the grass automatically. It continuously alternates between mowing and charging.
The movement pattern is random, which means that the lawn is mowed evenly and with less wear. The boundary wire and the guide wire controls the movement of the product within the work area. Sensors in the product senses when it is approaching the boundary wire. The front of the product always passes the boundary wire by a specific distance before the product turns around.
When the product hits an obstacle or approaches the boundary wire the product selects a new direction.
The operator selects the operation settings with the keys on the keypad. The display shows the selected and possible operation settings, and the operation mode of the product.

Mowing technique

The frequent cutting technique improves the grass quality and decreases the use of fertilizers. Collection of grass is not necessary.

Find the charging station

The product operates until the battery state of charge is low, then the product starts to go to the charging station. The guide wire is put from the charging station to a remote part of the work area or through a narrow passage. The guide wire is connected with the boundary wire to make it easier and faster for the product to find the charging station.

Automower Connect

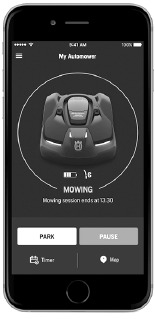

Automower Connect is a mobile application that makes it possible to select the operation settings remotely. You can also set the settings of the product. Refer to Automower Connect app.

Automower Connect

Automower Connect is a mobile application that makes it possible to select the operation settings remotely. Refer to Automower Connect app.

Product overview

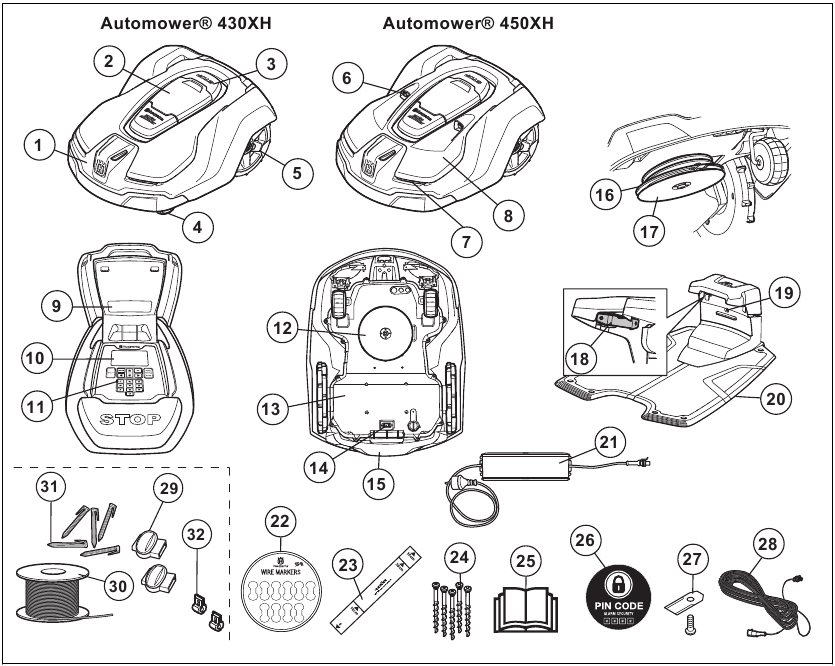

The numbers in the figure represent:

1. Body
2. Hatch to display and keypad
3. Stop button
4. Front wheels
5. Rear wheels
6. Ultrasonic sensors
7. Headlights
8. Replaceable cover
9. Rating plate (incl. product identification code)
10. Display
11. Keypad
12. Cutting system
13. Chassis box with electronics, battery and motors
14. Main switch
15. Handle
16. Blade disc
17. Skid plate
18. Contact plates
19. LED for operation check of the charging station and boundary wire
20. Charging station
21. Power supply ¹
22. Cable markers
23. Measurement gauge when installing the boundary wire (the measurement gauge is broken loose from the box)
24. Screws for securing the charging station
25. Operator's Manual and Quick Guide
26. Alarm decal
27. Extra blades
28. Low voltage cable
29. Couplers for the loop wire ²
30. Loop wire for boundary loop and guide wire ³
31. Stakes ⁴
32. Connectors for the loop wire ⁵

¹ The appearance may differ depending on market.
² Is a part of the Installation kit which is purchased separately.
³ See note 2
⁴ See note 2
⁵ See note 2

Symbols on the product

These symbols can be found on the product. Study them carefully.

	Read the user instructions before operating the product.
	Disable the product before working on or lifting the product.
	Keep a safe distance from the product when operating. Keep your hands and feet away from the rotating blades.
	Do not ride on the product. Do not put your hands or feet close to or under the product.
	Do not use a high-pressure washer or even running water to clean the product.
	Use a detachable power supply as defined on the rating label next to the symbol.
	This product complies with the applicable EU Directives.
	It is not permitted to dispose this product as normal household waste. Ensure that the product is recycled in accordance with local legal requirements.
	The chassis contains components which are sensitive to electrostatic discharge (ESD). The chassis must also be resealed in a professional manner. For these reasons the chassis shall only be opened by authorized service technicians. A broken seal can result in the entire or parts of the guarantee no longer being valid.
	The low-voltage cable must not be shortened, extended or spliced. Do not use a trimmer nearby the lowvoltage cable. Be careful when trimming edges where the cables are placed.

Symbols on the display

	In the schedule menu you can set when the product will cut the lawn.
	In the cutting height menu you can set the cutting height of the product.
	In the security menu you can select between 3 security levels for the product.
	In the messages menu you can find the Fault messages and Info messages of the product.
	The Weather timer function automatically adapts the cutting intervals to the grass growth.
	In the installation menu you can set manual settings for the installation of the product.
	In the settings menu you can set the general settings of the product.
	In the accessories menu you can set the settings for the accessories of the product.
	The schedule is set for the product to not cut the grass.
	The product overrides the schedule.
	The battery indicator shows the charge level of the battery. When the product charges the symbol flashes.
	The product is in the charging station and the battery is fully charged.
	The product is set in ECO-mode.
	Bluetooth wireless communication with your mobile device.
	The GPS-supported navigation is active. Flashes as it collects GPS information.
	The GPS-supported navigation is not active.
	The signal strength of the GPRS reception.
	Problem with the connection to the Internet server.
	Problem with the SIM card or the module.

Symbols on the battery

	Lithium-ion batteries can explode or cause fire if disassembled, short-circuited or handled roughly. Do not expose to water, fire or high temperature.
	Read the user instructions.
	Do not discard the battery into fire and do not expose the battery to a heat source.
	Do not immerse the battery into water.

General manual instructions

The following system is used in the Operator's Manual to make it easier to use:

• Text written in italics is a text that is shown in the display or is a reference to another section in the Operator's Manual.
• Text written in bold is one of the buttons on the product.

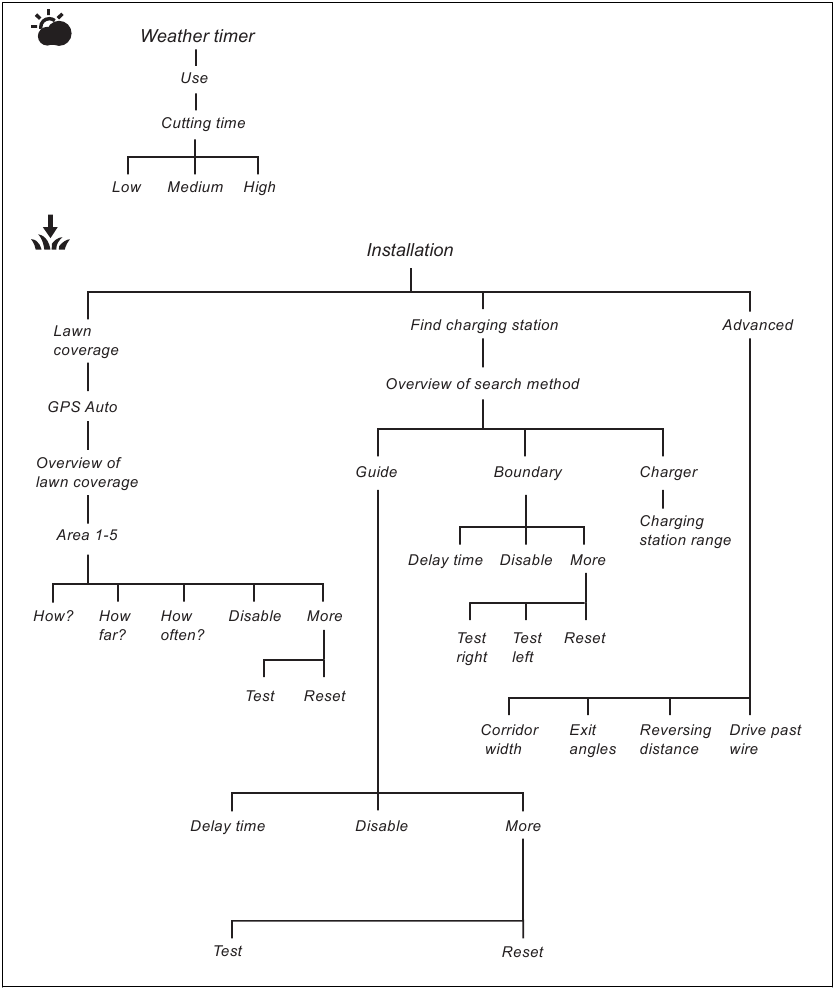

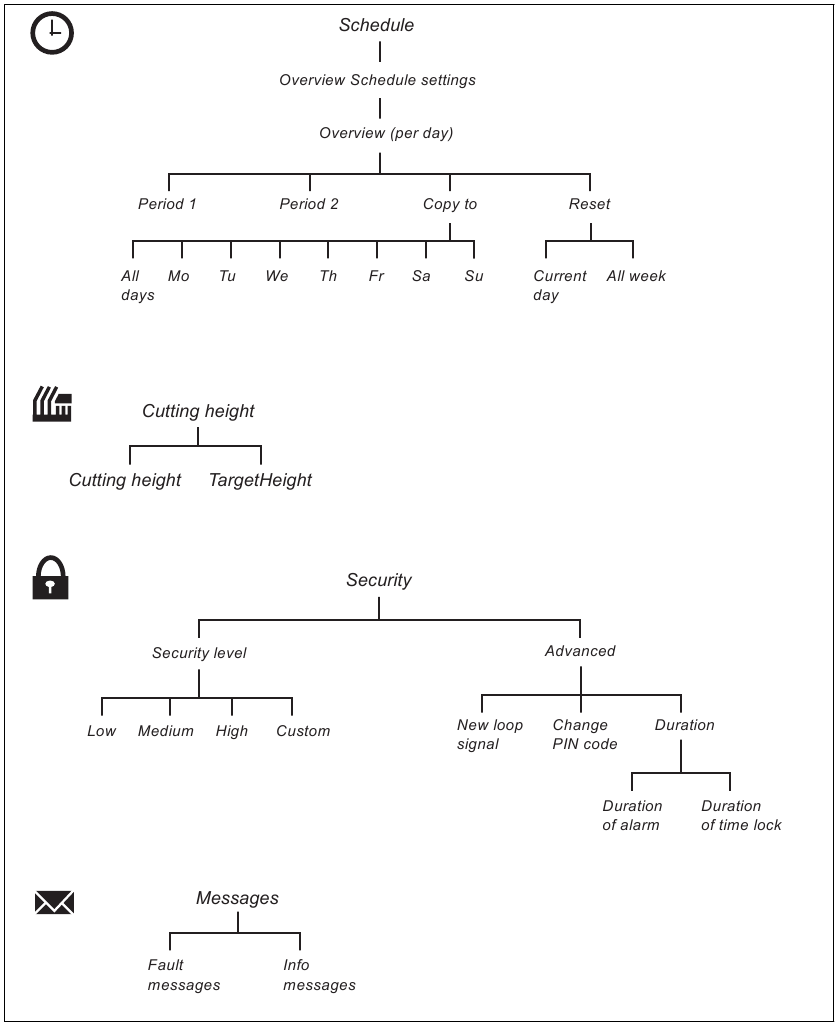

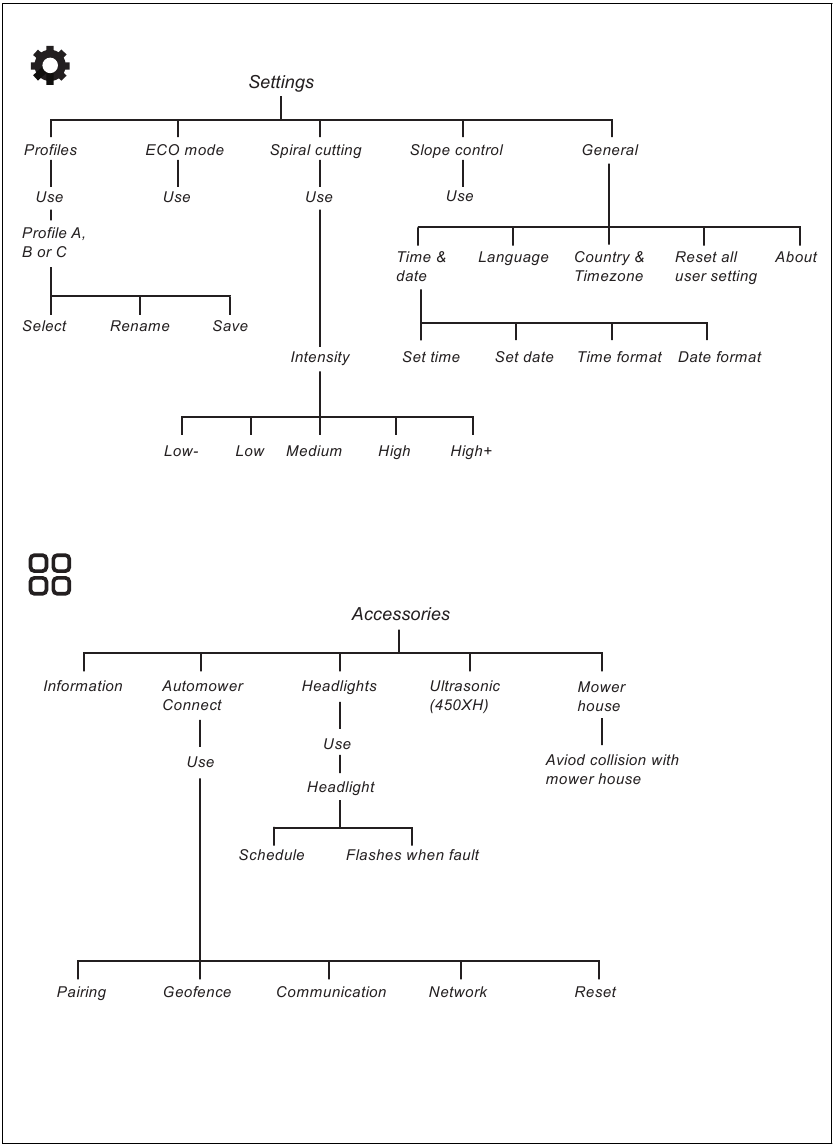

Menu structure overview

Display

The display on the product shows information and settings of the product.
To access the display, push the STOP button.

Keypad

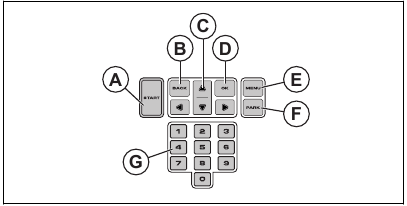

Use the keypad on the product to navigate in the menu.
To access the keypad, push the STOP button.

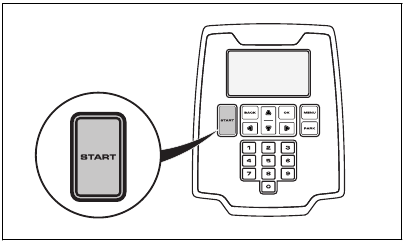

• Use the START button (A) to start the operation of the product.
• Use the BACK button (B) to move up in the menu lists.
• Use the arrow buttons (C) to navigate in the menu.
• Use the OK button (D) to confirm the settings you select in the menus.
• Use the MENU button (E) to go to the main menu.
• Use the PARK button (F) to send the product to the charging station.
• Use the number buttons (G) to enter PIN code, time and date.

Installation

Introduction - Installation

Read and understand the safety chapter before you install the product.

Use original spare parts and installation material.

Note: Refer to www.husqvarna.com for more information about installation.

Main components for installation

The installation involves the following components:

• A robotic lawn mower that mows the lawn automatically.
• A charging station, which has 3 functions:
  • To send control signals along the boundary wire.
  • To send control signals along the guide wire so that the product can follow the guide wire to specific remote areas in the garden and can find its way back to the charging station.
  • To charge the product.
• A power supply, which is connected to the charging station and a 100-240V power outlet.
• Loop wire, which is laid around the work area and around objects and plants that the product must not run into. The loop wire is used both as boundary wire and guide wire.

To prepare for installation

Read the installation chapter before you start the installation. Prepare the installation carefully to make the product operate satisfactorily.

• Make a blueprint of the work area and include all obstacles. This makes it easier to examine where to put the charging station, the boundary wire and the guide wire.
• Make a mark on the blueprint where to put the charging station, the boundary wire and the guide wire.
• Make a mark on the blueprint where the guide wire connects to the boundary wire. Refer to To install the guide wire .
• Fill in holes in the lawn to make it level.

Holes with water in the lawn can cause damage to the product.

• Cut the grass before you install the product. Make sure that the grass is maximum 10 cm / 3.9 in.

Note: The first weeks after installation the sound level when the product cuts the grass can be higher than usual. The sound level decreases after some time.

Before the installation of the wires

You can select to attach the wires with stakes or bury them. You can use the 2 procedures for the same work area.

If you use a dethatcher in the work area, bury the boundary wire and the guide wire to prevent them from damage.

To examine where to put the charging station

• Keep a minimum 3 m / 10 ft. of free space in front of the charging station. Refer to To examine where to put the guide wire.
• Keep a minimum of 150 cm / 60 in. of free space to the right and left of the center of the charging station.
• Put the charging station near a power outlet.

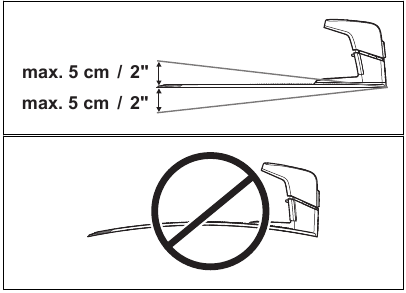

• Put the charging station on a level surface.
• The baseplate of the charging station must not be bent.

• If the work area has two parts separated with a steep slope, we recommend to put the charging station in the lower section.
• Put the charging station in an area with protection from the sun.
• If the charging station is installed on an island, make sure to connect the guide wire to the island. Refer to To make an island.


To examine where to put the power supply

Do not cut or extend the low-voltage cable. There is a risk of electrical shock.

Make sure that the blades on the product do not cut the low-voltage cable.

The power supply cable and extension cable must be outside the work area to avoid damage to the cables.

Do not put the low-voltage cable in a coil or below the charging station plate. The coil causes interference with the signal from the charging station.

• Put the power supply in an area with a roof and protection from the sun and rain.
• Put the power supply in an area with good airflow.
• Use a residual-current device (RCD) with a tripping current of maximum 30 mA when you connect the power supply to the power outlet.

Low-voltage cables of different lengths are available as accessories.

To examine where to put the boundary wire

If the work area is adjacent to water bodies, slopes, precipices or a public road, the boundary wire must have a protective wall. The wall must be minimum 15 cm / 6 in. in height.

Do not let the product operate on gravel.

Do not make sharp bends when you install the boundary wire.

For careful operation without noise, isolate all obstacles such as trees, roots and stones.

The boundary wire should be put as a loop around the work area. Sensors in the product senses when the product approaches the boundary wire, and the product selects another direction. All parts of the work area must be maximum 15 m / 50 ft. from the boundary wire.
To make the connection easier between the guide wire and the boundary wire, it is recommended to make an eyelet where the guide wire will be connected. Make the eyelet with approximately 20 cm / 8 in. of the boundary wire.

Note: Make a blueprint of the work area before you install the boundary wire and guide wire.

• Put the boundary wire around all of the work area (A). Adapt the distance between the boundary wire and obstacles.
• Put the boundary wire 40 cm / 16 in. (B) from an obstacle that is more than 5 cm / 2 in. high.
• Put the boundary wire 35 cm / 14 in. (C) from an obstacle that is 1-5 cm / 0.4-2 in. high.
• Put the boundary wire 10 cm / 4 in. (D) from an obstacle that is less than 1 cm / 0.4 in. high.

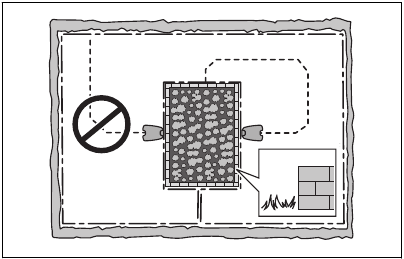

• If you have a paving stone path that is in level with the lawn, put the boundary wire below the paving stone.

Note: If the paving stone is minimum 30 cm / 12 in. wide, use the factory setting for the Drive Past Wire function to cut all the grass adjacent to the paving stone. Refer to Drive Past Wire function.

• If you make an island, put the boundary wire that runs to and from the island near together (E). Put the wires in the same stake. Refer to To put the wire into position with stakes.

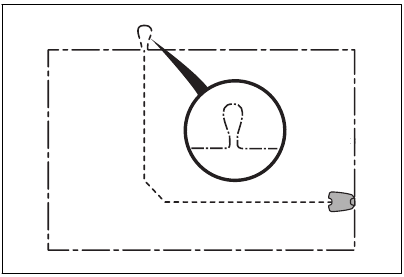

• Make an eyelet (F) where the guide wire is to be connected to the boundary wire.

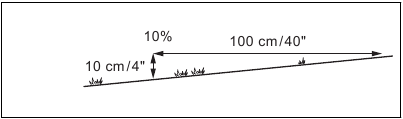

To put the boundary wire in a slope
The product can operate in 45% slopes. Slopes that are too steep must be isolated with the boundary wire. The gradient (%) is calculated as the vertical height divided by the horizontal distance. Example: 10 cm / 100 cm = 10%.

• For slopes steeper than 45% inside the work area, isolate the slope with boundary wire.

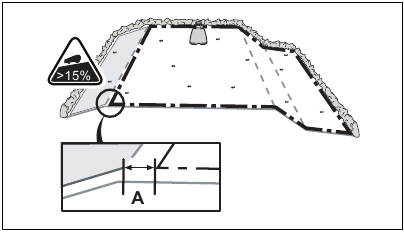

• For slopes steeper than 15% along the outer edge of the lawn, put the boundary wire 20 cm / 8 in. (A) from the edge.

• For slopes adjacent to a public road, put a barrier of minimum 15 cm / 6 in. along the outer edge of the slope. You can use a wall or a fence as a barrier.

Passages

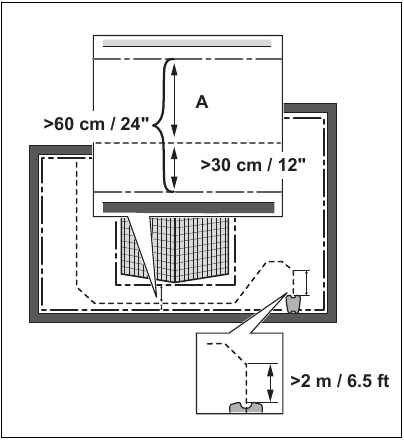

A passage is a section that has boundary wire on each side and that connects 2 parts of the work area. The distance between the boundary wire on each side in the passage must be a minimum of 60 cm / 24 in.
Note: If a passage is less than 2 m / 6.5 ft. wide, install a guide wire through the passage.
The recommended minimum distance between the guide wire and the boundary wire is 30 cm / 12 in. The product always runs to the left of the guide wire as seen facing the charging station. It is recommended to have as much free area as possible to the left of the guide wire (A).

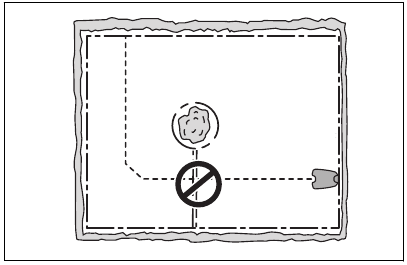

To make an island

Do not put a section of boundary wire across the other. The sections of boundary wire must be parallel.

Do not put the guide wire across the boundary wire.

Isolate or remove obstacles that are less than 15 cm / 6 in. in height.

Isolate or remove obstacles that slope slightly, for example, stones, trees or roots. This will prevent damage to the blades of the product.

To make an island, isolate areas in the work area with the boundary wire. We recommend to isolate all stable objects in the work area.
Some obstacles are resistant to a collision, for example, trees or bushes that are more than 15 cm / 6 in. in height. The product will collide with the obstacle and then select a new direction.

• Put the boundary wire to and around the obstacle to make an island.
• Put the 2 sections of boundary wire to and from the island close together. This will make the product run across the wire.
• Put the 2 sections of boundary wire in the same stake.

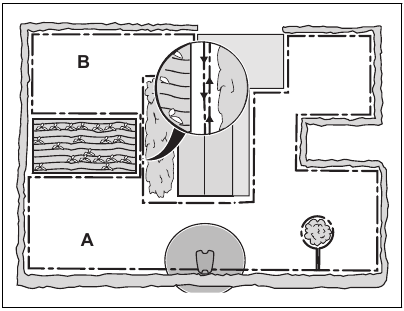

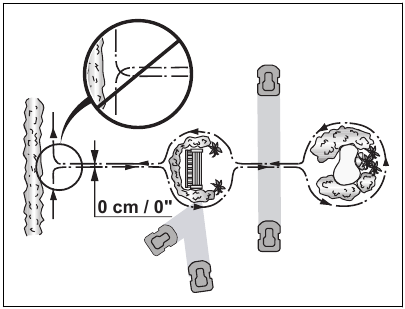

To make a secondary area
Make a secondary area (B) if the work area has 2 areas that are not connected with a passage. The work area with the charging station is the main area (A).

Note: The product must be manually moved between the main area and the secondary area.

• Put the boundary wire around the secondary area (B) to make an island. Refer to To make an island.


Note: The boundary wire must be put as 1 loop around all of the work area (A + B).

Note: When the product cuts grass in the secondary area, the Secondary area mode must be selected. Refer to Secondary area .

To examine where to put the guide wire

• Put the guide wire in a line at a minimum of 2 m / 6.5 ft. in front of the charging station.
• Make as much free area as possible to the left of the guide wire when facing the charging station. Refer to Corridor width
• Put the guide wire minimum 30 cm / 12 in. from the boundary wire.

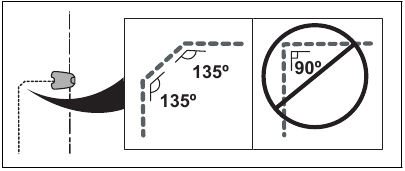

• Do not make sharp bends when you install the guide wire.

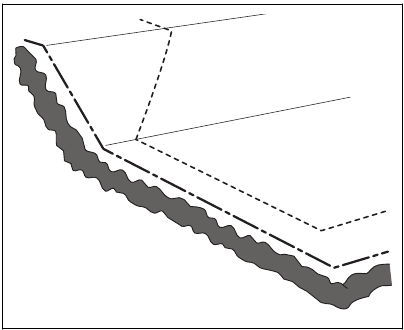

• If the work area has a slope, put the guide wire diagonally across the slope.

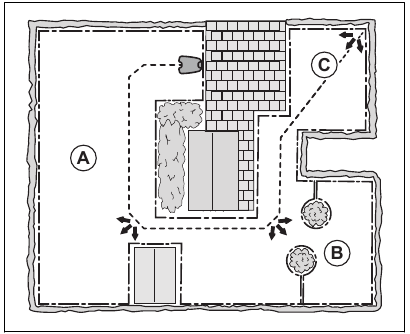

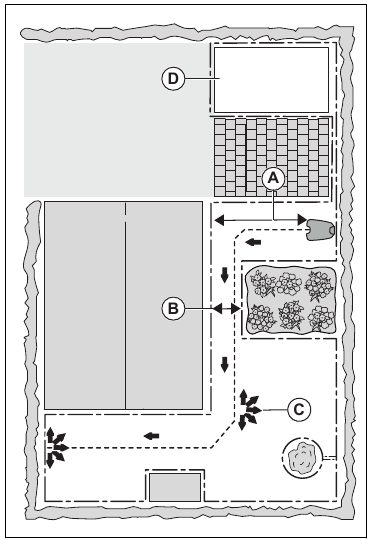

Work area examples

• If the charging station is put in a small area (A), make sure that the distance to the boundary wire is at a minimum 3 m / 10 ft. in front of the charging station.
• If the work area has a passage (B) with no guide wire installed, the recommended minimum distance between the boundary wires is 2 m / 6.5 ft. With a guide wire installed through the passage, the recommended minimum distance between the boundary wires is 60 cm / 24 in.
• If the work area has areas which are connected by a narrow passage (B), you can set the product to first follow and then leave the guide wire after a certain distance (C). The settings can be changed in Lawn Coverage.
• Use the GPS Assisted Navigation that helps the product select the most optimal operation. Refer to To set the GPS Assisted Navigation.
• If the work area includes a secondary area (D), refer to To make a secondary area.
  Put the product in the secondary area and select Secondary area mode.

Installation of the product

Installation tools

• Hammer/plastic mallet: To simplify putting the stakes into the ground.
• Edge cutter/straight spade: To bury the boundary wire.
• Combination pliers: For cutting the boundary wire and pressing the connectors together.
• Adjustable plier: For pressing the couplers together.

To install the charging station

Do not make new holes in the charging station plate.

Do not put your feet on the baseplate of the charging station.

Make sure that the plugs of the low-voltage cable and the power supply unit are clean and dry before you connect them.

When connecting the power supply, only use a power outlet that is connected to an residual-current (RCD) device.

1. Read and understand the instructions about the charging station. Refer to To examine where to put the charging station.
2. Put the charging station in the selected area.
   Note: Do not attach the charging station to the ground with the screws until the guide wire is installed. Refer to To install the guide wire.
3. Connect the low-voltage cable to the charging station.

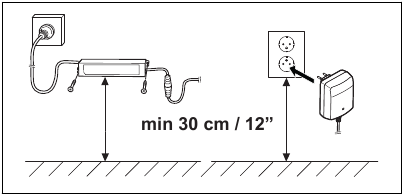

4. Put the power supply at a minimum height of 30 cm / 12 in.

5. Connect the power supply cable to a 100-240V power outlet.
   Note: The product can be put in the charging station to charge while you install the boundary wire and the guide wire.
6. Put the low-voltage cable in the ground with stakes or bury the cable. Refer to To put the wire into position with stakes or To bury the boundary wire or the guide wire.
7. Connect the wires to the charging station after the installation of boundary wire and guide wire is complete. Refer to To install the boundary wire and To install the boundary wire.
8. Attach the charging station to the ground with the supplied screws after the guide wire is installed. Refer to To install the guide wire.

To install the boundary wire

Do not put remaining wire in a coil. The coil causes interference with the product.

1. Put the boundary wire around all of the work area. Start and complete the installation behind the charging station.

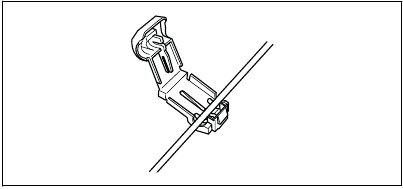

2. Open the connector and put the boundary wire in the connector.

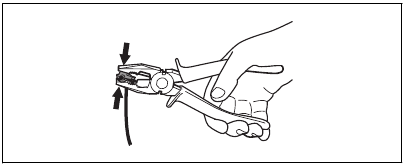

3. Close the connector with a pair of pliers.

4. Cut the boundary wire 1-2 cm / 0.4-0.8 in. above each connector.
5. Push the right connector onto the metal pin on the charging station with the mark "AR".
6. Push the left connector onto the metal pin on the charging station with the mark "AL".

To install the guide wire

Twinned cables, or a screw terminal block that is insulated with insulation tape are not satisfactory splices. Soil moisture will cause the wire to oxidize and after a time result in a broken circuit.

1. Open the connector and put the wires in the connector.
2. Close the connector with a pair of pliers.
3. Cut the guide wires 1-2 cm / 0.4-0.8 in. above each connector.
4. Put the guide wires centrally below the charging station plate, and push them through the slot in the charging station tower.
5. Push the connector onto the metal pin on the charging station with the mark "G1, G2" or "G3".
6. Disconnect the charging station from the power outlet.
7. Put the cable mark on the guide wires.
8. Put the end of the guide wires at the eyelet on the boundary wire.
9. Cut the boundary wire with a pair of wire cutters.
10. Connect the guide wires to the boundary wire with a coupler.

    1. Put the 2 ends of the boundary wire and the end of the guide wires into the coupler.
       Note: Make sure that you can see the end of the guide wires through the transparent area of the coupler.

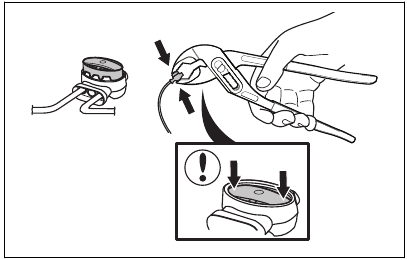

    2. Push down the cover on the coupler with adjustable pliers to attach the wires in the coupler.

11. Attach the guide wires to the ground with stakes or bury the guide wires in the ground. Refer to put the wire into position with stakes or To bury the boundary wire or the guide wire.
12. Connect the charging station to the power outlet.

To put the wire into position with stakes

Make sure that the stakes hold the boundary wire and the guide wire against the ground.

Cutting the grass too low right after installation can damage the wire insulation. Damage to the insulation may not cause disruptions until several weeks or months later.

1. Put the boundary wire and the guide wire on the ground.
2. Put the stakes at a maximum of 75 cm / 30 in. distance from each other.
3. Attach the stakes to the ground with a hammer or a plastic mallet.

Note: The wire is overgrown with grass and not visible after a few weeks.

To bury the boundary wire or the guide wire

• Cut a groove in the ground with an edge cutter or a straight shovel.
• Put the boundary wire or the guide wire 1-20 cm / 0.4-8 in. into the ground.

To extend the boundary wire or the guide wire

Note: Extend the boundary wire or the guide wire if it is too short for the work area. Use original spare parts, for example couplers.

1. Disconnect the charging station from the power outlet.
2. Cut the boundary wire or the guide wire with a pair of wire cutters where it is necessary to install the extension.
3. Add wire where it is necessary to install the extension.
4. Put the boundary wire or the guide wire into position.
5. Put the wire ends into a coupler.
   Note: Make sure that you can see the ends of the boundary wire or the guide wire through the transparent area of the coupler.

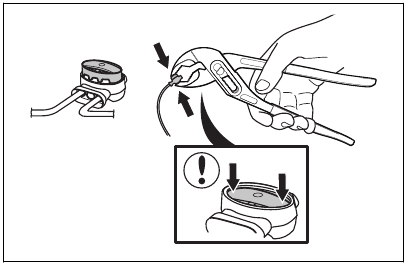

6. Push down the cover on the coupler with adjustable pliers to attach the wires in the coupler.
7. Put the boundary wire or the guide wire into position with stakes.
8. Connect the charging station to the power outlet.

After the installation of the product

To do a visual check of the charging station

1. Make sure that the indicator LED lamp on the charging station has a green light.

2. If the indicator LED lamp does not have a green light, do a check of the installation. Refer to To install the charging station and Indicator lamp in the charging station.

To do the basic settings

Before the product starts to operate for the first time, you must do the basic settings.

1. Put the product in the charging station.
2. Switch on the product.
3. Push the arrow buttons and the OK button. Select language, country, date, time and set a PIN code.
   Note: For some models, a factory PIN code is necessary before you select a personal PIN code. It is not possible to use 0000 as PIN code.
4. Push the Start button and close the hatch to initiate a calibration process of the product.
   Note: If the battery is too low, the product needs to charge the batteries fully before the calibration starts. Refer to Calibration.
   Note: Make a note of the PIN code. Refer to Introduction.

Calibration

The calibration process is automatic. After the basic settings are done, the product moves away from the charging station and stops, while it calibrates some of the product settings. When the calibration is complete, the product starts to mow.

Product settings

You can use the keypad and the display on the product or the Automower Connect app to do the settings for the functions of the product. The functions of the product have factory settings that are applicable for almost all work areas, but the settings can be adapted to the conditions for each work area.

Automower Connect app

The product can connect to mobile devices that have the Automower Connect app installed. Automower Connect is a free app for your mobile device. You can use the extended functions for the product in the Automower Connect app.

• The Dashboard shows the current operation of the product. You can select an operating mode for the product in the dashboard.
• The Map shows the current position of the product and the set center point for the GeoFence function.
• In the Settings menu you can set the settings for the product.
• In the Statistics menu you can see the statistics of the product.
• In the Messages menu you can find the Fault messages and the Information messages of the product.

The Automower Connect app has Long-range cellular connectivity and Short-range Bluetooth connectivity.

To install the Automower Connect app

1. Download the Automower Connect app on your mobile device.
2. Sign up for a Husqvarna account in the Automower Connect app.
3. An e-mail is sent to the registered e-mail address. Follow the instructions in the e-mail in less than 24 hours to validate your account.
4. Log in to your Husqvarna account in the Automower Connect app.

To pair Automower Connect and the product

Bluetooth communication and the Automower Connect kit for cellular communication are included in Automower 430XH/450XH.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Accessories > Automower Connect > Pairing > New pairing.
3. Follow the instructions in the Automower Connect app.

Product settings with keypad and display

To get access to the menu in the display of the product

1. Push the STOP button.
2. Use the number buttons and the OK button to enter the PIN code.
3. Push the MENU button.

Menu structure

The main menu contains:

• Schedule
• Cutting height
• Security
• Messages
• Weather timer
• Installation
• Settings
• Accessories

Refer to Menu structure overview

Schedule

Note: The lawn should not be cut too often to obtain the best result. If the product is allowed to operate too much, the lawn may appear flattened. The product is also subjected to unnecessary wear.

To set the schedule

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Schedule > Overview.
3. Use the arrow buttons and the OK button to select the day.
4. Use the right arrow button to select the period.
5. Push the OK button.
6. Calculate the suitable operating hours. Refer to To calculate the suitable operating hours.
7. Enter the time with the number buttons. The product can cut the grass 1 or 2 periods each day.

8. If the product must not cut grass on a specified day, unselect the box adjacent to the 2 time periods.

To calculate the suitable operating hours
If the work area is less than maximum product capacity, the schedule should be set to minimize wear on the lawn and the product.

1. Calculate the dimension of your lawn in m² / ft² .
2. Divide the m² / ft² of the lawn with the approximate daily operation capacity. Refer to table below.
3. The result is equal to the number of hours that the product must mow each day. The number of hours includes both mowing, searching and charging time.

Product work capacity	Approximate daily operation capacity, m2/h, ft2/h
Automower 430XH	133 / 1430
Automower 450XH	208 / 2240

Example: A lawn of 1000 m² / 10800 ft² , cut with a Automower 430XH.
1000 m² / 133 ≈ 7.5 h.
10800 ft² / 1430 ≈ 7.5 h.

Days / week	h / day	Suggested schedule setting
7	7.5	07:00- 14:30 / 7:00 am - 2:30 pm

To copy the schedule setting

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Schedule > Overview > Copy.
3. Use the arrow buttons and the OK button to copy the schedule setting. You can copy the schedule settings day to day or for the full week.


To reset the schedule setting
You can remove all schedule settings and use the factory setting.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Schedule > Overview > Reset .
   1. Push the arrow buttons to select Current day to only reset the current day to factory settings.
   2. Push the arrow buttons to select All week to reset all schedule settings to factory settings.
3. Push the OK button.

Cutting height

The cutting height can be varied from MIN (5 cm / 2 in.) to MAX (9 cm / 3.6 in.).
Note: The height adjustment setting is shown in the display of the product as a scale/numerical value.

During the first weeks after a new installation, the cutting height must be set to MAX to avoid damaging the loop wire. After this, the cutting height can be lowered step by step every week until the desired cutting height has been reached.

Adjust the cutting height

During the first weeks after a new installation, the cutting height must be set to MAX to avoid damaging the loop wire. After this, the cutting height can be lowered step by step every week until the desired cutting height has been reached.

The cutting height can be varied from MIN (5 cm / 2 in.) to MAX (9 cm / 3.6 in.). To set the cutting height

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Cutting height.
3. Use the arrow buttons to set the cutting height.
4. Push the OK button.

TargetHeight
Use the TargetHeight function to lower the cutting height from the maximum cutting height to the specified cutting height gradually during 10 days. If you change the cutting height manually during this time it will disable the TargetHeight function.

To set the TargetHeight

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Cutting height > TargetHeight.
3. Push the OK button to enable or disable the function.
4. Push the BACK button.

Security level

There are 3 security levels for the product.

Function	Low	Medium	High
Alarm			X
PIN-code		X	X
Time lock	X	X	X

• Alarm - An alarm goes off if the PIN-code is not entered within 10 seconds after the STOP button is pushed. The alarm also goes off when the product is lifted. The alarm stops when the PIN-code is entered.
• PIN-code - The correct PIN-code must be entered to get access to the Menu structure of the product. If the incorrect PIN-code is entered 5 times, the product is locked for a time. The lock is extended for each new incorrect try.
• Time lock - The product locks if the PIN-code has not been entered in 30 days. Enter the PIN-code to get access to the product.

To set the security level
Select 1 of 3 security levels for your product.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > Security > Security level.
3. Use the arrow buttons and the OK button to select the level of security.
4. Push the OK button.

To create a New loop signal
The loop signal is randomly selected to create a unique link between the product and the charging station. In rare cases, there may be a need to generate a new signal, for instance if two adjacent installations have a very similar signal.

1. Place the product in the charging station.
2. Do steps 1–3 in To get access to the menu in the display of the product.
3. Use the arrow buttons and the OK button to move through the menu structure Security > Advanced > New loop signal.
4. Await confirmation that the loop signal has been generated. This normally takes about 10 seconds.

To change the PIN-code

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > Security > Advanced > Change PIN-code.
3. Enter the new PIN code.
4. Push the OK button.
5. Enter the new PIN code again.
6. Push the OK button.
7. Make a note of the new PIN code. Refer to Introduction.

To change the duration of the alarm

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Security > Advanced > Duration > Duration of alarm.
3. Use the arrow buttons to select a time interval of 1 to 20 minutes.
4. Push the BACK button.

To change the duration of the time lock

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Security > Advanced > Duration > Duration of time lock.
3. Use the number buttons to select a time interval of 1–90 days.
4. Push the BACK button.

Messages

In this menu the previous fault and information messages can be found. For some of the messages, there are tips and advice to help to rectify the fault. Refer to Troubleshooting.

If the product is disrupted in any way, for example it is trapped or the battery is low, a message is saved relating to the disruption and the time it happened.

If the same message is repeated several times, this may indicate that an adjustment to the installation or the product is required. Refer to Installation.

To read the messages

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Messages > Fault messages and Messages > Info messages.
3. Read the messages and read the Troubleshooting to get information and recommendations to correct the faults.

Weather timer

Weather timer automatically adjust the cutting time to the growth of the grass. The product is not permitted to operate more than the schedule settings.

Note: When using Weather timer, it is recommended to make as much operating time as possible available for Weather timer. Do not restrict the schedule more than necessary.

The first operation of the day is set by the schedule settings. The product always complete 1 mowing cycle, and then Weather timer selects if the product will continue to operate or not.

Note: Weather timer is reset if the product does not operate for more than 50 hours, or if a Reset of all user settings is done. Weather timer is not changed if a Reset of schedule settings is done.

To set the Weather timer

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Weather timer > Use Weather timer.
3. Push the OK button to select the Weather timer.
4. Push the BACK button.

To set the Weather timer frequency
Set how frequently the product cuts the grass when the Weather timer is in use. There are 3 frequency levels: Low, Mid and High. The higher the frequency, the more sensitive the product is to the grass growth. That is, if the grass growth is high then the product is allowed to work longer.

Note: If the mowing results are not optimal when using Weather timer, the schedule settings may need adjusting. Do not restrict the schedule more than necessary. Also, check that the blade disc is clean and that the blades are in good condition.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Weather timer > Cutting time.
3. Use the arrow buttons to select Low, Mid or High frequency.
4. Push the BACK button.

Settings

In settings you can change the general settings to your product.

Profiles
With the function Profiles, different sets of product settings can be saved. This can be used when one product is used for more than one work areas and charging stations. The product settings and the pairing with the charging stations are saved in the profile and can easily be used again.

To save settings to a profile

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > Profiles > Use profiles > Profile A, B, C.
3. Use the arrow buttons and the OK button to select and save the profile.
4. Push the BACK button.

If settings have been changed but not saved, the symbol * is shown beside the profile name.

To change the name of a profile

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > Profiles > Use profiles > Profile A, B, C. > Rename.
3. Use the arrow buttons and the OK button to select letters.
4. Push the BACK button to save the new profile name.

To use a profile

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > Profiles > Use profiles > Profile A, B, C > Select.
3. Push the BACK button.

To connect a new charging station to a profile

1. Save the settings in a profile to be used with the original charging station. Do steps 1–4 in To save settings to a profile.
2. Put the product in the new charging station.
3. Use the arrow buttons and the OK button to move through the menu structure Security > Advanced > New loop signal .
4. Save a profile for the new charging station, or select a profile in the list. Do steps 1–4 in To save settings to a profile, or do steps 1–3 in To use a profile.

ECO mode
ECO mode disables the signal in the boundary wire, guide wire and the charging station, when the product is parked or is charging.

Note: Use ECO mode to save energy and to prevent interference with other equipment, for example hearing loops or garage doors.

Note: To start the product manually in the work area, push the STOP button before you remove the product from the charging station. If not, the product cannot be started in the work area.

To set the ECO mode

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > ECO mode.
3. Push the OK button to select the ECO mode.
4. Push the BACK button.

Spiral Cutting
The product cuts the grass in a spiral pattern if the grass is longer in an area. Spiral cutting can be set in 5 levels:

• Low-
• Low
• Mid
• High
• High+

The level sets how sensitive the product is to changes in grass height.

Note: Spiral cutting is only started in the Main area mode. Cutting in the Secondary area mode does not let the product to start Spiral cutting. Spiral Cutting does not start in slopes steeper than 15%.

To set the Spiral Cutting

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > Spiral Cutting > Use Spiral Cutting.
3. Push the BACK button.

To set the level of Spiral Cutting

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > Spiral Cutting > Use Spiral Cutting > Intensity.
3. Use the left arrow button to select the level of the Spiral Cutting.
4. Push the BACK button.

Slope control
In order to decrease lawn wear near the boundary wire in slopes, the product prevents to move in the opposite direction when the product operates in a slope. Slope control is enabled in the factory settings.

To set the Slope control

1. Do steps 1–3 in To get access to the menu in thedisplay of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > Slope control > Use Slope control.
3. Push the BACK button.

General
In General you can change the general settings of the product.

To set the time & date

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > General > Time & Date.
3. Use the number buttons to set the time and then push the BACK button.
4. Use the number buttons to set the date and then push the BACK button.
5. Use the arrow buttons to set the time format and then push the BACK button.
6. Use the arrow buttons to set the date format and then push the BACK button.

To set the language

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > General > Language.
3. Use the arrow buttons to select language and then push the BACK button.

To set the Country & Timezone

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > General > Country & Timezone.
3. Use the arrow buttons to select country and then push the BACK button.

To set the unit format

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > General > Unit format.
3. Use the arrow buttons to select unit format and then push the BACK button.

To reset all user settings

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Settings > General > Reset all user settings.
3. Use the right arrow button to select Proceed with reset of all user settings?
4. Push the OK button to reset all the user settings.

Note: Security level, PIN code, Loop signal, Messages, Date & Time, Language and Country settings are not reset.

The About menu
The About menu displays information about the product, for example serial number and firmware versions.

Installation

In the Installation menu it is possible to adapt the settings of the product for best mowing result.

Lawn Coverage
If the work area includes remote parts that are connected with narrow passages, the Lawn Coverage function is useful to be able to maintain a well-cut lawn in all parts of the yard. A guide wire must be installed to use the functions. You can set a maximum of 5 remote areas.
With the Lawn Coverage function the product first follows and then leaves the guide wire after a certain distance and starts to mow the lawn.
Area A, approximately 50%
Area B, approximately 30%
Area C, approximately 20%

GPS Assisted Navigation
The GPS Assisted Navigation function helps the product to select the most optimal operation. Use the Lawn coverage function to do manual settings.

To set the GPS Assisted Navigation
Disable the GPS Assisted Navigation to make manual settings in Lawn coverage.

Note: It is recommended to use GPS Assisted Navigation.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Installation > Lawn coverage.
3. Push the OK button to enble or disable the function.
4. Push the BACK button.

To set the Lawn Coverage function

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Installation > Lawn Coverage > Area 1-5.
3. Use the arrow button to select the area.
4. Push the OK button.
5. Measure the distance from the charging station to the start of the area. Measure along the guide wire. Refer to To measure the distance from the charging station.
6. Push the number buttons to select the distance.
7. Push the OK button.
8. Use the number buttons to select the percentage of the cutting time the product must cut the area. The percentage is equal to the area in relation to the complete work area.
   1. Measure the area.
   2. Divide the measured area with the total work area.
   3. Convert the result to percentage.

Note: The sum of Area 1-5 must be 100% or less. If the sum is less than 100%, the product sometimes starts to mow at the charging station. Refer to To set the exit angle.

9. Push the BACK button.

To do a test of the Lawn Coverage function

1. Put the product in the charging station.
2. Do step 1-3 in To get access to the menu in the display of the product.
3. Use the arrow buttons and the OK button to move through the menu structure Installation > Lawn Coverage > Area 1-5 > More > Test.
4. Push the OK button.
5. Push the START button.
6. Close the hatch.
7. Make sure the product can find the area.

To measure the distance from the charging station

1. Put the product in the charging station.
2. Do steps 1–3 in To get access to the menu in the display of the product.
3. Use the arrow buttons and the OK button to move through the menu structure Installation > Lawn Coverage > Area 1-5 > How far?
4. Use the number buttons to set 500 m / 500 yd as a distance.
5. Push the OK button.
6. Use the arrow buttons and the OK button to move through the menu structure Settings > Lawn Coverage > Area 1-5 > More > Test.
7. Push the OK button.
8. Push the STOP button when the product is at the distance you select to measure. The distance shows in the display.

To disable or enable the Lawn Coverage function
Disable or enable the Lawn Coverage function for each area.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Installation > Lawn Coverage > Area 1-5 > Disable.
3. Push the OK button.
4. Push the BACK button.

To reset the Lawn Coverage settings
You can reset the Lawn Coverage settings for each area and use the factory setting.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Installation > Lawn Coverage > Area 1-5 > More > Reset.
3. Push the OK button.

Methods for the product to find the charging station
The product has 3 search methods to find the charging station:

• Irregular - The product operates in the work area until it finds the signal of the charging station.
• Guide wire - The product operates in the work area until it finds the signal of the charging station or the guide wire. If it finds the guide wire the product moves along the guide wire to the charging station.
• Boundary wire - The product moves in the work area until it finds the signal of the charging station, the guide wire or the boundary wire. If it finds the boundary wire, the product moves along the boundary wire to the charging station.

The factory setting is set to mix the 3 search methods. When the battery is low the product starts to search for the charging station with the irregular method for 3 min. After 3 min the product changes search method to the guide wire method. After 11 min the product changes search method to the boundary wire method.
You can change the settings for how the product finds the charging station to adapt to the work area.

To set how the product finds the charging station
You can make manual settings to make the product search for the guide wire or the boundary wire in 0–30 min from when the battery is low.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Installation > To find the charging station > Overview of search methods > Guide.
3. Push the arrow buttons to select 1 of the guide wires.
4. Push the number buttons to set the time.
5. Push the OK button.
6. Push the BACK button.
7. Use the arrow buttons and the OK button to move through the menu structure Installation > To find the charging station > Overview of search methods > Boundary wire.
8. Push the number buttons to set the time.
9. Push the OK button.
10. Push the START button and close the hatch.

To do a test of the guide wire

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Installation > Find charging station > Guide > More > Test guide.
3. Put the product 3 m / 9 ft. from the guide wire, facing the guide wire.
4. Push the START button and close the hatch.
5. Make sure the product follows the guide wire to the charging station.
6. Make sure the product docks with the charging station.
7. If the product does not dock with the charging station, change the position of the charging station or the guide wire. Refer to To install the charging station and To install the guide wire.

To do a test of the boundary wire

1. Put the product 3 m / 9 ft. from the boundary wire, facing the boundary wire.
2. Do steps 1–3 in To get access to the menu in the display of the product.
3. Use the arrow buttons and the OK button to move through the menu structure Installation > Find charging station > Overview of search methods > Boundary > More > Test right / Test left.
4. Push the START button and close the hatch.
5. Make sure the product follows the boundary wire to the charging station.
6. Make sure the product docks with the charging station.
7. Change the position of the charging station or the boundary wire if the product does not dock with the charging station. Refer to To install the charging station and To install the guide wire.

To change the signal range of the charging station

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Installation > Find the charging station > Overview of search methods > Charging station range.
3. Use the left arrow button to select MAX, MID, MIN.
4. Push the BACK button.

Note: It is usually better to move the charging station, than to decrease the range of the charging station signal.

Corridor width
The boundary wire corridor is the area adjacent to the boundary wire and the guide corridor is the area adjacent to the guide wire. The product uses the corridors to find the charging station. When the product moves in the direction of the charging station, it always moves to the left of the guide wire.
The corridor width is adjusted automatically. If it is necessary to adjust the corridor width manually for the product to operate satisfactorily, you can set the corridor width between 0-9. If guide corridor width is set to 0, the product straddles the guide wire. The factory setting is 6 for the boundary wire and 9 for the guide wire.

To set the corridor width

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Installation > Advanced > Corridor width.
3. Use the arrow buttons to select a corridor.
4. Use the number buttons to select a corridor width of 0-9.

Note: Make the corridor width as wide as possible for a minimum risk of lines in the lawn.

Exit angle
If the sum of the Lawn Coverage function is less than 100%, the product sometimes starts to mow at the charging station. The product moves away from the charging station with an exit angle between 90°–270°. The exit angles can be set to 1–2 exit sectors.

To set the exit angle

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Installation > Advanced > Exit angles > Sector 1.
3. Use the number buttons to set the angles in degrees.
4. Push the down arrow button.
5. Use the number buttons to select how frequently the product must use each sector. Set in percentage.
6. Push the BACK button.

Reversing distance
The reversing distance makes the product move in reverse for a set distance, before the product starts to cut the lawn.

To set the reversing distance

1. Do steps 1-3 in To get access to the menu in the display of the product.
2. Use the arrow button and the OK button to move through the menu structure Installation > Advanced > Reversing distance.
3. Use the number buttons to set the distance.
4. Push the BACK button.

Drive Past Wire function
The front of the product always moves past the boundary wire by a specified distance. Then the product moves rearward and changes direction. The factory setting is 31 cm / 13 in. You can select a distance of 20-50 cm / 10-15 in.

Note: If you change the distance for Drive Past Wire, the distance will change along the boundary wire in all parts of the work area.

To set the Drive Past Wire function

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow button and the OK button to move through the menu structure Installation > Advanced > Drive Past Wire.
3. Use the number buttons to set the distance.
4. Push the BACK button.

Accessories

Settings for accessories mounted on the product can be made in this menu.

Information
This menu handles accessories mounted on the product. Contact your local Husqvarna representative for more information on available accessories.

Automower Connect
The product can connect to mobile devices that have the Automower Connect app installed. The Automower Connect app has Long-range cellular connectivity and Short-range Bluetooth connectivity. Refer to Automower Connect app.

Note: Automower Connect is always connected to your product while the mobile device have connection with the mobile network and the product is switched on.

Note: All countries do not support Automower Connect because of regional specified cellular systems. The included Automower Connect life-time service only applies if there is a third part sub-supplier of 2G/3G/4G available in the operational area. In some countries Bluetooth is not available because of legal reasons.

To enable the GeoFence function
GeoFence is a GPS-based theft protection that makes a virtual fence for the product. You will get a message if the product is moved on the other side of the GeoFence.

1. Put the product in the center of the work area.
2. Do steps 1–3 in To get access to the menu in the display of the product.
3. Use the arrow buttons and the OK button to move through the menu structure Accessories > Automower Connect > GeoFence > Activate GeoFence.
4. Push the OK button.
5. Select Activate GeoFence and push the OK button.

To set a new center point for the Geofence function

1. Put the product in the center of the work area.
2. Do steps 1–3 in To get access to the menu in the display of the product.
3. Use the arrow buttons and the OK button to move through the menu structure Accessories > Automower Connect > GeoFence > New center point.
4. Push the OK button.

To set the GeoFence level of sensitivity
The higher level of GeoFence sensitivity, the easier the alarm starts.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Accessories > Automower Connect > GeoFence.
3. Use the arrow buttons to select level of GeoFence sensitivity.
4. Push the BACK button.

To use the SMS function
The SMS function sends you an SMS when the product is moved out of the GeoFence.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Accessories > Automower Connect > Communication > Use SMS.
3. Push the OK button.
4. Use the arrow buttons and the OK button to move through the menu structure Accessories > Automower Connect > Communication > SMS phone numbers.
5. Push the number buttons to enter the telephone number with country code. For example (+)46701234567.
6. Push the BACK button.

Note: There is a maximum of 10 SMS each month from the product.

Network
APN settings
The product must specify APN settings to be able to use and send data via the mobile net. Settings for Husqvarna SIM is default.

Ultrasonic Automower 450XH
The Ultrasonic function makes the product decrease speed when the product comes near an obstacle. The product operates at a lower speed if the Ultrasonic function is disabled.

To set the Ultrasonic function

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Accessories > Ultrasonic > Use.

Headlights
To set the schedule for the headlights

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Accessories > Headlights > Schedule.
3. Select between Always ON, Evening only (19:00-00:00), Evening & night (19:00-07:00) or Always OFF.

To set the Flashes when fault function
The headlights flashes if the product stops to operate because of a fault if Flashes when fault is enabled.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Accessories > Headlights > Flashes when fault.
3. Use the OK button to enable or disable the Flashes when fault function.

To avoid collisions with the Automower house
The wear on the product and the Automower house decreases when you select Avoid collisions with mower.

1. Do steps 1–3 in To get access to the menu in the display of the product.
2. Use the arrow buttons and the OK button to move through the menu structure Accessories > Mower house > Avoid collisions with mower.

Note: If Avoid collisions with mower is selected it can result in grass that is not cut around the charging station.

Operation

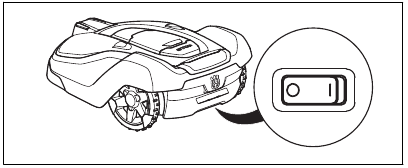

Main switch

Read and understand the safety chapter before you use the product.

• Set the Main switch to the 1 position to start the product.

• Set the Main switch to the 0 position to set the product to OFF.

To start the product

1. Push the STOP button to open the hatch on the product.
2. Set the Main switch to position 1.
3. Enter the PIN code.
4. Push the START button.

5. Select an operating mode. Refer to Operating modes - Start.
6. Push the OK button.
7. Close the hatch on the product.

Note: If the product is parked in the charging station, the product will start to operate when the battery is fully charged and if the Schedule settings is set for operation.

Note: The first weeks after installation the perceived sound level when cutting the grass may be higher than expected. When the product has cut the grass for some time, the perceived sound level is much lower.

Operating modes - Start

• Main area
• Secondary area
• Override schedule
• Spot cutting

Main area

Use the operating mode Main area for the product to cut and charge automatically.

Secondary area

Use Secondary area operating mode to cut secondary areas. You must move the product manually between the main area and the secondary area. The product cuts for a selected period of time or until the battery is empty.

Note: You must put the product manually in the charging station to charge the product when it is in a secondary area. The product will move out from the charging station and stop when the battery is charged. You must select an operating mode to start the product.

Note: If you will cut the main area after the battery is charged, set the product to Main area mode before you put the product in the charging station.

Override schedule

Use the operating mode Override schedule to temporarily override the Schedule settings for 24h or 3 days.

Note: It is not possible to cut more than the maximum cutting time for each day. Refer to To calculate the suitable operating hours.

Spot cutting

Use the operating mode Spot cutting to cut a selected area in a spiral pattern. You must move the product manually to the selected area before you start the Spot cutting operating mode.

Note: After the product has operated in the operating mode Spot cutting, it will automatically start to cut in the operating mode Main area or Secondary area.

To park the product

1. Push the STOP button to open the hatch.
2. Set the Main switch to position 0.
3. Enter the PIN code.
4. Push the PARK button.
5. Select an operating mode. Refer to Operating modes - Park.
6. Push the OK button.
7. Close the hatch.

Operating modes - Park

• Park until further notice
• Start with schedule

Park until further notice
Use the operating mode Park until further notice for the product to go back to the charging station. The product will stay in the charging station until you select a new operating mode.

Start again with next schedule
Use the operating mode Start again with next schedule for the product to go back to the charging station. The product will stay in the charging station until the next Schedule setting.

To stop the product

1. Push the STOP button to make the product and the cutting motor stop.

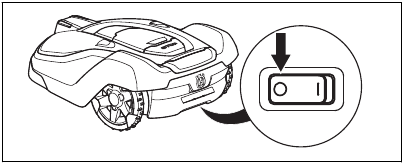

To switch off the product

1. Push the STOP button on top of the product.
2. Set the Main switch to position 0.


To charge the battery

Only charge the product using a charging station which is intended for it. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
In the event of leakage of electrolyte flush with water and seek medical help if it comes in contact with the eyes etc.

When the product is new or has been stored for a long period, the battery can be empty and needs to be charged before starting. In the Main area mode, the product automatically alternates between mowing and charging.

1. Set the Main switch to position 1.
2. Place the product in the charging station. Slide the product in as far as possible to ensure proper contact between the product and the charging station. Refer to contact and charging plates in Product overview
3. The display shows a message that charging is in progress.

Maintenance

Introduction - maintenance

The product must be switched off before any maintenance is done.

Wear protective gloves.

For better operation and longer service life, make sure to clean the product regularly and replace worn parts. All maintenance and servicing must be done according to Husqvarna's instructions. Refer to Warranty.

When the product is first used, the blade disc and blades should be inspected once a week. If the amount of wear during this period has been low, the inspection interval can be increased.

It is important that the blade disc rotates easily. The edges of the blades should not be damaged. The lifetime of the blades varies immensely and depends for instance on:

• Operating time and size of the work area.
• Type of grass and seasonal growth.
• Soil, sand and use of fertilizers.
• The presence of objects such as cones, windfalls, toys, tools, stones, roots and the like.

The normal life is 3 to 6 weeks when used under favorable conditions. Refer to Replacement of the blades on how to replace the blades.

Note: Working with blunt blades gives a poorer mowing result. The grass is not cut cleanly and more energy is needed resulting in the product not mowing such a large area.

Clean the product

Never use a high-pressure washer to clean the product. Never use solvents for cleaning.

The product does not operate satisfactorily in slopes if the wheels are blocked with grass. Use a soft brush to clean the product.

Husqvarna recommends to use a special cleaning and maintenance kit, available as accessory. Speak to your Husqvarna representative for more information.

Chassis and blade disc

Inspect the blade disc and blades once a week.

1. Push the STOP button.
2. Set the Main switch to position 0.
3. Lift the product onto its side.
4. Clean the blade disc and chassis using for example a dish brush. At the same time, check that the blade disc rotates freely in relation to the foot guard. Also, check that the blades are intact and can pivot freely.


To clean the wheels

The product does not operate satisfactorily in slopes if the wheels are blocked with grass.

• Use a soft brush to clean the wheels.

To clean the body of the product

• Use a moist cloth and a weak soap solution to clean the body of the product.

To clean the charging station

Disconnect the power supply from the power outlet before maintenance, or when you clean the charging station or power supply.

Do not use a high-pressure washer or running water to clean the charging station.

Note: The product cannot enter the charging station if there are objects in the charging station. Clean the charging station regularly.

• Remove grass, twigs and other objects from the charging station.

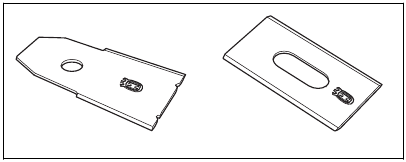

Replacement of the blades

Husqvarna can only guarantee safety if you use Husqvarna original blades with the embossed crowned H-mark logotype.

You must replace the screws when you replace the blades. The used screws can wear quickly and make the blade come loose, this can cause serious injury.

Replace worn or damaged blades for a safe operation. Replace the blades regularly for a satisfactory cut result and a low energy use. All 3 blades and screws must be replaced at the same time to get a balanced cutting system.

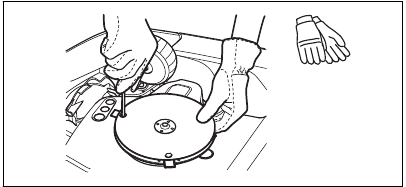

To replace the blades

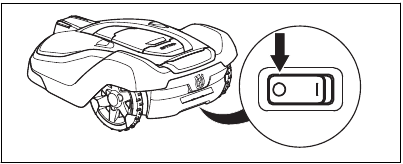

1. Push the STOP button.
2. Set the Main switch to the 0 position.

3. Put the product with the blade disc up on a soft and clean surface.
4. Rotate the skid plate until its holes align with the screws for the blade.
5. Remove the 3 screws with a screwdriver.

6. Remove the 3 blades.
7. Attach 3 new blades and screws.
8. Make sure that the blades can pivot freely.

Battery

Charge the battery fully before you put the product into storage. If the battery is not fully charged it can cause damage to the battery.

If the operating time of the product is shorter than usual between charges, this means that the battery is at the end of its life cycle. Replace the battery to extend the operating time.

Note: The battery life is related to the length of the season and how many hours a day the product operates. A long season or many hours of operation a day means that the battery must be replaced more regularly.

Winter service

Take your product to your Husqvarna central service for service prior to winter storage. Regular winter service will maintain the product in good condition and create the best conditions for a new season without any disruptions.

Service usually includes the following:

• Thorough cleaning of the body, the chassis, the blade disc and all other moving parts.
• Testing of the product's function and components.
• Checking and, if required, replacing wear items such as blades and bearings.
• Testing the product's battery capacity as well as a recommendation to replace battery if necessary.
• If new firmware is available, the product is updated.

Troubleshooting

In this chapter you can find information and help about faults and symptoms of the product. You can find more information and FAQ (Frequently Asked Questions) on www.husqvarna.com.

Fault messages

The list below shows a number of fault messages that may be shown in the app. Speak to your local Husqvarna representative if the same message shows frequently.

Message	Cause	Action
Wheel motor blocked	Grass or other objects is wound around the drive wheel.	Examine the drive wheel and remove the grass or other object.
Cutting system blocked	Grass or other objects is wound around the blade disc.	Examine the blade disc and remove the grass or other object.
	The blade disc are in a pool of water.	Move the product and prevent the collection of water in the work area.
Cutting height blocked	Grass or other objects is wound around the cutting height adjustment, or between the blade disc and chassis.	Examine the blade disc and the bellows around the cutting height adjustment, and remove any grass or other objects that may have got stuck.
Trapped	The product is blocked in a small area behind a number of obstacles.	Examine if there are obstacles which make it hard for the product to move away from this location.
No loop signal	The power supply or the low-voltage cable is not connected.	Examine the LED status on the charging station. If there is no power to the charging station, the LED is not lit. Examine the power outlet connection and if a residual-current device is engaged. Make sure that the lowvoltage cable is connected to the charging station.
	The power supply or the low-voltage cable is damaged.	Replace the power supply or low-voltage cable.
	The boundary wire is not connected to the charging station.	Make sure that the boundary wire connectors are fitted properly to the charging station. Replace connectors if damaged. Refer to To install the boundary wire.

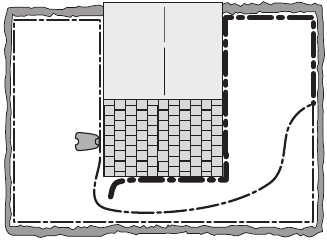

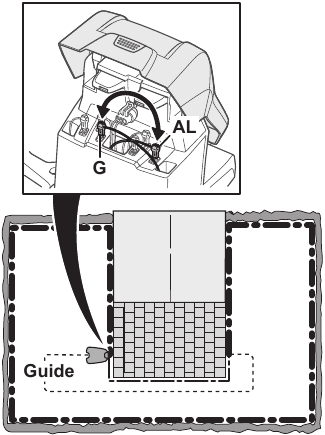

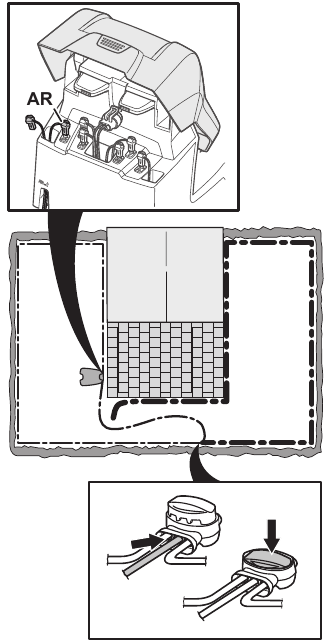

	Boundary wire broken.	Examine the LED on the charging station. If the LED indicates that there is a break in the boundary wire, find out where the break is. Replace the damaged section of the loop with a new loop wire. Use an original coupler to make a splice of the loop ends. Refer to Find breaks in the loop wire.
	ECO mode is activated and the product has attempted to start outside the charging station.	Put the product in the charging station. Start the product. Refer to To start the product.
	The boundary wire is crossed on its way to and from an island.	Make sure that the boundary wire is put down correctly. Refer to To install the boundary wire.
	The product does not find the loop signal from the charging station.	Put the product in the charging station and generate a new loop signal. Refer to To create a New loop signal.
	Disturbances from metal objects (fences, reinforcement steel) or buried cables close by.	Try to move the boundary wire and/or make more islands in the work area to increase the signal strength.
	The product is too far from the boundary wire.	Redo the installation of the boundary wire so that all parts of the work area is maximum 35 m / 115 ft. from the boundary wire.
Wrong PIN code	An incorrect PIN code has been entered. 5 tries are permitted, and the product is then blocked for a period of time.	Enter the correct PIN code. If the PIN code is lost, use the link in the app to send the PIN code to your registered e-mail address. If you have not registered the e-mail address, speak to your authorized service center.
Outside work area	The boundary wire connections to the charging station are crossed.	Make sure that the boundary wire is connected correctly to the charging station. Refer to To install the boundary wire.
	The boundary wire is too close to the edge of the work area.	Make sure that the boundary wire is put down correctly. Refer to To install the boundary wire.
	The work area slopes too much by the boundary loop.
	The boundary wire is laid in the wrong direction around an island.
	Disturbances from metal objects (fences, reinforcement steel) or buried cables close by.	Try to move the boundary wire and/or make more islands in the work area to increase the signal strength.
	The product finds it hard to distinguish the signal from another product installation close by.	Put the product in the charging station and generate a new loop signal. Refer to To create a New loop signal.
Empty battery	The product cannot find the charging station.	Change the position of the guide wire. Refer to To install the guide wire.
		Check the installation settings about how to find the charging station. Refer to Methods for the product to find the charging station.
	The battery is spent.	Replace the battery. Refer to Battery.
	The charging station's antenna is damaged.	Check if the indicator lamp in the charging station flashes red. Refer to Indicator lamp in the charging station. This problem requires action by authorized service technician.
Slipped/No drive	The product has hit an obstacle and stopped or the wheels cannot move on the wet grass.	Free the product and rectify the reason for the lack of drive. If it is due to wet grass, wait until the lawn has dried before using the product.
	The work area includes a steep slope.	Maximum guaranteed slope is %. Steeper slopes should be isolated. Refer to To put the boundary wire in a slope.
	The guide wire is not laid at an angle on a slope.	If the guide wire is laid on a slope, it must be laid at an angle across the slope. Refer to To put the boundary wire in a slope.
Wheel motor overloaded	Grass or other objects is wound around the drive wheel.	Examine the drive wheel and remove grass or other objects.
Charging station blocked	The contact between the charging strips and contact strips may be poor and the product has made a number of attempts to charge.	Put the product in the charging station and check that the charging plates and contact plates make good contact.
	An object is obstructing the product.	Remove the object.
	The charging station is tilted or bent.	Confirm that the charging station is placed on a fully flat and horizontal ground. The charging station must not be tilted or bent.
Stuck in charging station	The product slips on the baseplate.	Clean the baseplate.
	There is an object in the way of the product preventing it from leaving the charging station.	Remove the object.
Upside down	The product is leaning too much or has turned over.	Turn the product the right way up.
Mower tilted	The product is tilted more than the maximum angle.	Move the product to a flat area.
Needs manual charging	The product is set to the Secondary area operating mode.	Place the product in the charging station. This behavior is normal and no action is required.
Next start hh: mm	The schedule setting prevents the product from operating.	Change the schedule settings. Refer to Schedule.
	The clock on the product is not correct.	Set the time. Refer to To set the time & date.
Lifted	The lift sensor is engaged because the product hit an object or/and is blocked.	Free the product. If the problem stays, speak to your approved servicing dealer.
Collision sensor problem, front/rear	The body of the product can not move freely around its chassis.	Remove dirt or objects between the chassis and the body to make sure that the body can move freely around the chassis.
	The product has become stuck.	Free the product and rectify the reason.
Wheel motor blocked right/left	Grass or other object is wrapped around the drive wheel.	Clean the wheels and around the wheels.
Alarm! Mower switched off	The alarm was activated because the product was switched OFF.	Adjust the mower security settings in the Security menu. Refer to Security level.
Alarm! Mower stopped	The alarm was activated because the product was stopped.
Alarm! Mower lifted	The alarm was activated because the product was lifted.
Alarm! Mower tilted	The alarm was activated because the product was tilted.
Alarm! Outside Geo-Fence	The alarm was activated because the product was outside the GeoFence.
Electronic problem	Temporary electronic or firmware related issue in the product.	Restart the product. If the problem stays, speak to your approved servicing dealer.
Loop sensor problem, front/rear
Tilt sensor problem
Temporary problem
Wheel drive problem, right/left
Invalid device combination
Ultrasonic problem
GPS navigation problem
Temporary battery problem
Faulty mix of batteries
Battery problem	Temporary battery or firmware related issue in the product.	Restart the product. If the problem stays, speak to your approved servicing dealer.
	Wrong type of battery	Use only original batteries recommended by the manufacturer.
Battery temperature outside limits	The product does not operate if the battery temperature is too high or too low.	The product starts to operate again when the temperature is between the set limits and the schedule settings let the product to operate. Make sure that the charging station is put in an area with protection from the sun.
Charging current too high	Wrong or faulty power supply unit.	Restart the product. If the problem stays, speak to your approved servicing dealer.
Charging system problem	There is corrosion or dirt on the charging plates and contact plates.	Restart the product. Clean the charging plates on the product and the contact plates on the charging station.
	Temporary electronic or firmware problem in the product.	Restart the product. If the problem stays, speak to your approved servicing dealer.
Connectivity problem	Potential problem on the connectivity circuit board in the product.	Restart the product. If the problem stays, speak to your approved servicing dealer.
Cutting system major imbalance	The product has discovered vibrations in the blade disc	Continued operation can cause damage to the cutting system. Examine that the blades and screws are not damaged or worn. Make sure that all blades are correctly installed and that there is only one blade attached in each position on the blade disc.

Information messages

The list below shows a number of information messages that may be found in the Messages menu in the Automower Connect app. Contact your local Husqvarna representative if the same message appears often.

Message	Cause	Action
Low battery	The product cannot find the charging station.	Change the position of the guide wire. Refer to To install the guide wire.
		Make sure that the installation settings about how to find the charging station is correct. Refer to Methods for the product to find the charging station.
	The battery is spent.	Replace the battery. Refer to Battery.
	The charging station's antenna is damaged.	Check if the indicator lamp in the charging station flashes red. Refer to Methods for the product to find the charging station. This problem requires action by authorized service technician.
Settings restored	Confirmation that a Reset all user settings has been carried out.	This is normal. No action required.
Limited cutting height	The cutting height adjustment cannot move.	Examine the cutting height adjustment and remove grass or other objects. If the problem stays, speak to your approved servicing dealer.
Unexpected cutting height adj
Limited cutting height range
Cutting height problem
Cutting height blocked
Cutting system imbalance	The product has discovered vibrations in the blade disc.	Verify that the blades and screws are intact and not worn out. Verify that all blades are correctly mounted. Check that no double blades are mounted on any of the three blade positions.
Slope too steep	The product stopped because the slope is too steep.	Change the installation of the boundary wire to not include this steep part of the work area. Refer to To install the boundary wire.
Guide 1 not found Guide 2 not found Guide 3 not found	The guide wire is not connected to the charging station.	Check that the guide wire's connector is tightly connected to the charging station. Refer to To install the guide wire.
	Break in the guide wire.	Find out where the break is. Replace the damaged section of the guide wire with a new loop wire and splice using an original coupler.
	The guide wire is not connected to the boundary loop.	Check that the guide wire is connected correctly to the boundary loop. Refer to To install the guide wire.
Guide calibration failed	The product has failed to calibrate the guide wire.	Check that the guide wires are installed according to the instructions. Refer to To install the guide wire. The next time the product moves out from the charging station, a new guide calibration is done.
Guide calibration accomplished	The product has succeeded to calibrate the guide wire.	No action required.
GPS navigation problem	Problem with the GPS assisted navigation equipment.	Contact your local Husqvarna representative if this message appears often.
Weak GPS signal	The sky is blocked in large parts of the work area.	If possible, remove objects that can cause a blockage of the GPS signal.
		Disable the GPS navigation function and use the lawn coverage function. Refer to To set the Lawn Coverage function.
Difficult finding home	The product has been following the boundary wire several laps without finding the charging station.	The installation has not been done correctly. Refer to Methods for the product to find the charging station.
		Wrong corridor width setting on boundary wire. Refer to To install the boundary wire.
		The product was started on a Secondary area with the Main area setting.
Temporary problem with the server.	Please try again.	Contact your local Husqvarna representative if this message appears often.
Connection settings restored	Settings for wireless connectivity have been restored due to an error.	Check and revise settings if necessary.
SIM card requires PIN	The SIM card must be unlocked.	Make sure the correct SIM PIN has been entered into the mower's menu (Network > SIM card). Contact your local Husqvarna representative if this message appears often.
SIM card locked	The SIM card must be replaced.	Contact your local Husqvarna representative.
SIM card not found	Automower ® Connect requires a SIM card to be inserted in the mower.	Contact your local Husqvarna representative.
GeoFence problem	The is not work due to poor (or no) communication with the system.	Contact your local Husqvarna representative.

Indicator lamp in the charging station

The indicator lamp in the charging station must show a solid or flashing green light for a correct installation. If not, follow the instructions in the troubleshooting guide below.

Speak to your Husqvarna customer service for more information.

Light	Cause	Action
Green solid light	Good signals	Usual operation of the product.
Green flashing light	The signals are good and ECO mode is enabled.	Usual operation of the product. Refer to ECO mode.
Blue flashing light	The boundary wire is not connected to the charging station.	Make sure that the boundary wire is correctly installed in the charging station. Refer to To install the boundary wire.
	Damage in the boundary wire.	Find out where the damage is. Replace the damaged section with new boundary wire.
Red flashing light	Interference in the antenna of the charging station.	Speak to your Husqvarna customer service.
Red solid light	Error in the circuit board or incorrect power supply in the charging station. The error must be corrected by an authorized service technician.	Speak to your Husqvarna customer service.

Symptoms

If your product does not work as expected, follow the symptoms guide below.

There is a FAQ (Frequently Asked Questions) on www.husqvarna.com which provides more detailed answers to a number of standard questions. Contact Husqvarna customer service if you still cannot find the reason for the fault.

Symptoms	Cause	Action
The product has difficulty docking.	The guide wire is not laid in a long straight line that is far enough out from the charging station.	Check that the charging station has been installed according to the instructions in To install the guide wire.
	The guide wire is not inserted in the slot under the charging station.	Make sure that the guide wire is in the correct position below the charging station. Refer to To install the guide wire.
	The charging station is not on a level surface.	Place the charging station on a surface that is entirely level. Refer to To examine where to put the charging station.
The product runs at the wrong time	The clock or the date in the product is not correct.	Set the clock or date. Refer to To set the time & date. .
	The start and stop times for mowing are incorrect.	Change the Schedule settings. Refer to Schedule.
The product vibrates.	Damaged blades lead to imbalance in the cutting system.	Inspect the blades and screws and replace them if necessary. Refer to Replacement of the blades.
	Too many blades in the same position lead to imbalance in the cutting system.	Check that only one blade is fitted at each screw.
	Different versions (thickness) of blades are used.	Check if the blades are of different versions.
The product runs, but the blade disc does not rotate.	The product searches for the charging station, or is reversing out of the charging station.	No action. The blade disc does not rotate when the product is searching for the charging station.
The product mows for shorter periods than usual between charges.	Grass or other foreign object blocks the blade disc.	Remove and clean the blade disc. Refer to Chassis and blade disc.
	The battery is spent.	Replace the battery. Refer to Battery.
	Dull blades. More energy is needed when cutting the grass.	Replace the blades. Refer to Replacement of the blades.
Both the mowing and charging times are shorter than usual.	The battery is spent.	Replace the battery. Refer to Battery.
The product is parked for hours in the charging station.	The hatch is closed but the START button is not pushed.	Push the STOP button to open the hatch. Enter the PIN code and confirm with the OK button. Push the START button and then close the hatch.
	Parking mode is activated.	Change the operating mode. Refer to Operating modes - Park.
	The product is not allowed to operate if the battery temperature is too high or too low.	Check that the charging station is placed in an area with protection from the sun.
Uneven mowing results.	The product works too few hours per day.	Increase the mowing time. Refer to Schedule.
	The shape of the work area requires the use of Lawn coverage function for the product to find its way to all remote areas.	Steer the product to a remote area. Refer to Lawn Coverage.
	The How often? setting is incorrect in relation to the layout of the work area.	Check that the correct How often? value is selected.
	The work area is too large.	Try limiting the work area or extending the schedule. Refer to Schedule.
	Dull blades.	Replace all the blades. Refer to Replacement of the blades.
	Long grass in relation to the set cutting height.	Increase the cutting height and then successively lower it.
	Accumulation of grass by the blade disc or around the motor shaft.	Check that the blade disc rotates freely and easily. If not, screw off the blade disc and remove grass and foreign objects. Refer to Chassis and blade disc.

Find breaks in the loop wire

Breaks in the loop wire are usually the result of unintentional physical damage to the wire such as when gardening with a shovel. In countries with ground frost, also sharp stones that move in the ground can damage the wire. Breaks can also occur due to the wire being stretched excessively during installation.

Mowing the grass too low right after the installation can damage wire insulation. Damage to the insulation may not cause disruptions until several weeks or months later. To avoid this, always select the maximum cutting height the first weeks after installation and then lower the height one step at a time every second week until the desired cutting height has been reached.

A damaged splicing of the loop wire can also lead to disruptions several weeks after the splice was done. A faulty splice can, for example, be the result of the coupler not being pressed together hard enough with a pair of pliers, or that a coupler of lower quality than the original coupler has been used. Please first check all known splices before further troubleshooting is done.

A wire break can be located by gradually halving the distance of the loop where the break may have occurred until there is only a very short section of the wire left.

The following method does not work if ECO mode is activated. Make sure first that ECO mode is switched off. Refer to ECO mode.

1. Check that the indicator lamp in the charging station flashes blue, which indicates a break in the boundary loop. Refer to Indicator lamp in the charging station.
2. Check that the boundary wire connections to the charging station are properly connected and not damaged. Check that the indicator lamp in the charging station is still flashing blue.

3. Switch the connections between the guide wire and the boundary wire in the charging station.
   Start by switching connection AL and G.
   If the indicator lamp has a solid green light, then the break is somewhere on the boundary wire between AL and the point where the guide wire is connected to the boundary wire (thick black line in the illustration).


To rectify the fault you will need boundary wire, connector(s) and coupler(s):

1. If the suspected boundary wire is short then it is easiest to exchange all of the boundary wire between AL and the point where the guide wire is connected to the boundary wire (thick black line).
2. If the suspected boundary wire is long (thick black line) then do as follows: Put AL and G back to their original positions. Then disconnect AR. Connect a new loop wire to AR. Connect the other end of this new loop wire at the middle of the suspected wire section.


If the indicator lamp now is green, then the break is somewhere in the wire between the disconnected end to the point where the new wire is connected (thick black line below). In that case, move the connection for the new wire closer to the disconnected end (roughly at the middle of the suspected wire section) and check again if the indicator lamp is green.

Continue until only a very short section of the wire remains which is the difference between a solid green light and a flashing blue light. Then follow instruction in step 5 below.

4. If indicator lamp still flashes blue in step 3 above: Put AL and G back in their original positions. Then switch AR and G. If indicator lamp now is lit with a solid green light then disconnect AL and connect a new boundary wire to AL. Connect the other end of this new wire at the middle of the suspected wire section. Follow the same approach as in 3a) and 3b) above.
5. When the break is found, the damaged section must be replaced with a new wire. Always use original couplers.


Transportation

The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.

• Obey all applicable national regulations.
• Obey the special requirement on package and labels for commercial transportations, including by third parties and forwarding agents.

Storage

• Fully charge the product. Refer to To charge the battery.
• Switch off the product. Refer to To switch off the product.
• Clean the product. Refer to Clean the product.
• Keep the product in a dry, frost free space.
• Keep the product with all wheels on level ground during storage, or use a wall hanger.
• If you keep the charging station indoors, disconnect and remove the power supply and all the connectors from the charging station. Put the end of each connector wire in a connector protection box.
  Note: If you keep the charging station outdoors, do not disconnect the power supply and the connectors.
• Contact Husqvarna sales representative about what accessories are available for your product.

Disposal

• Obey the local recycling requirements and applicable regulations.
• For questions about how to remove the battery, refer to To remove the battery.

To remove the battery

Only remove the battery when you dispose the product. When you remove the warranty seal, the Husqvarna warranty is no longer applicable.

1. Switch off the product. Refer to To switch off the product.
2. Pull out the grommet on the charging cable at the very front of the product, and carefully remove the connector.
3. Lift the cover, one corner at a time.

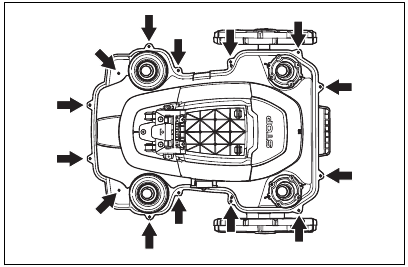

4. Remove the 14 screws with a Torx 20.

5. Lift the rear edge of the top section of the chassis.
6. Disconnect the cable from the main circuit board.
7. Remove the top section of the chassis.

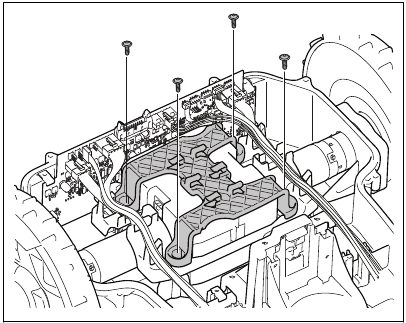

8. Remove the 4 screws that hold the battery with a Torx 20.

9. Disconnect the battery connection from the main circuit board.
10. Open the battery cover and remove the battery.

Technical data

Dimensions	Automower 430XH	Automower 450XH
Length, cm / in.	75 / 29.5	75 / 29.5
Width, cm / in.	63 / 24.8	63 / 24.8
Height, cm / in.	33 / 13	33 / 13
Weight, kg / lbs	14.7 / 5.8	15.3 / 6
Electrical system	Automower 430XH	Automower 450XH
Battery, Lithium-Ion 18 V/5.0 Ah Art. No.	593 11 84-01, 593 11 85-01, 593 11 84-03, 588 14 64-02, 593 11 84-04, 593 11 84-05, 593 11 84-06	593 11 84-01, 593 11 84-03, 588 14 64-02, 593 11 85-01, 593 11 84-04, 593 11 84-05, 593 11 84-06 (2 pcs.) 5.0 Ah/battery
Battery, Lithium-Ion 18 V/4.9 Ah Art. No.	593 11 84-02, 593 11 85-02, 588 14 64-03	593 11 84-02, 588 14 64-03, 593 11 85-02 (2 pcs.) 4.9 Ah/battery
Power supply (28V DC), V AC	100-240	100-240
Low-voltage cable length, m / ft.	10 / 33	10 / 33
Mean energy consumption at maximum use	18 kWh/month for a work area of 3200 m2 / 0.8 acre	23 kWh/month for a work area of 5000 m2 / 1.25 acres
Charging current, A DC	4.2	7
Type of Power Supply Unit 6	FW7448/28/D/XX/Y, ADP-120PR XX	FW7458/28/D/XX/Y, ADP-200MR XX
Average mowing time, min	145	270
Average charging time, min	50	60
Boundary wire antenna	Automower 430XH	Automower 450XH
Operating Frequency Band, Hz	100-80000	100-80000
Maximum magnetic field7 , dBuA/m	82	82
Maximum Radio-frequency power8 , mW @60m	<25	<25
Sound data9	Automower 430XH	Automowe® 450XH
Measured sound power noise level, dB (A)	56	60
Noise emissions uncertainties KWA, dB (A)	2	2
Guaranteed sound power noise level	59	62
Sound pressure noise level at the operator's ear10 , dB (A)	45	49
Mowing	Automower 430XH	Automower 450XH
Cutting system	3 pivoted cutting blades
Cutting motor speed, rpm	2300	2300
Power consumption during cutting, W +/- 20 %	30	35
Cutting height, cm / in.	5-9 / 2-3.6	5-9 / 2-3.6
Cutting width, cm / in.	24 / 9.4	24 / 9.4
Narrowest possible passage, cm / in.	60 / 24	60 / 24
Maximum slope for work area, %	45	45
Maximum slope for boundary wire, %	15	15
Maximum length boundary wire, m / ft.	800 / 2600	800 / 2600
Maximum length guide loop11 , m / ft.	400 / 1300	400 / 1300
Maximum distance to boundary wire m / ft.	35 / 115	35 / 115
Area capacity, m2 / acre(s), +/- 20%	3200 / 0.8	5000 / 1.25
IP-code	Automower 430XH	Automower 450XH
Robotic lawn mower	IPX4	IPX4
Charging station	IPX1	IPX1
Power supply	IP44	IP44
Frequency Band Support
Automower Connect 2G	GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz
Automower Connect 3G	Band 19 (800 MHz), Band 5 (850 MHz), Band 8 (900 MHz), Band 2 (1900 MHz), Band 1 (2100 MHz)
Automower Connect 4G	Band 12 (700 MHz), Band 17 (700 MHz), Band 28 (700 MHz), Band 13 (700 MHz), Band 20 (800 MHz), Band 26 (850 MHz), Band 5 (850 MHz), Band 19 (850 MHz), Band 8 (900 MHz), Band 4 (1700 MHz), Band 3 (1800 MHz), Band 2 (1900 MHz), Band 25 (1900 MHz), Band 1 (2100 MHz), Band 39 (1900 MHz)
Power Class
Bluetooth Output power	8 dBM
Automower Connect 2G	Power Class 4 (GSM/E-GSM)	33 dBm
	Power Class 1 (DCS/PCS)	30 dBm
	Power Class E2 (GSM/E-GSM)	27 dBm
	Power Class E2 (DCS/PCS)	26 dBm
Automower Connect 3G	Power Class 3	24 dBm
Automower Connect 4G	Power Class 3	23 dBm

⁶ XX, YY can be any alphanumeric characters or blank for marketing purpose only, no technical differences.
⁷ Measured according to EN 303 447.
⁸ Maximum active output power to antennas in the frequency band in which the radio equipment operates.
⁹ Determined according to Directive 2006/42/EC and standard EN 50636-2-107. Except Sound level, perceived that is measured according to ISO 11094:1991.
¹⁰ Sound pressure noise uncertainties K_pA , 2-4 dB (A)
¹¹ A guide loop is the connection between the guide wire, boundary wire and the connection on the right connector on the charging station.

Husqvarna AB does not guarantee full compatibility between the product and other types of wireless systems such as remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar.

The products are made in England or the Czech Republic. See information on the rating plate. Refer to Introduction.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

Read the warning instructions that follow before you use the product.

• Read the Operator's manual carefully and make sure you understand the instructions before you use the product. Keep for future reference.
• This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities (that could affect a safe handling of the product), or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. However, EU requirements allows this appliance to be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The product must only be used with the equipment recommended by Husqvarna. All other types of use are incorrect.
• Do not use the product when persons, especially children, or animals are in the work area.
• Warning signs must be put around the work area of the product if it operates in public areas. The signs must have the text that follows:

  Automatic lawn mower! Keep away from the machine! Supervise children!
• Do not touch moving hazardous parts, such as the blade disc, before it has come to a complete stop.
• Set the product to OFF before you clear a blockage, do maintenance or examine the product, and if the product starts to vibrate abnormally. Examine the product for damage before you start the product again. Do not use the product if it is damaged.
• If an injury or accident occur, get medical aid.
• Do not put power supply cable and extension cable in the work area. This can cause damage to the cables.
• Do not connect a damaged cable or plug, or touch a damaged cable, before it is disconnected from the power outlet. Disconnect the plug from the power outlet if the cable becomes damaged while in operation. A worn or damaged cable increases the risk of electrical shock. A damaged cable must be replaced by service personnel.
• When you connect the power supply to the power outlet, use a residual-current device (RCD) with a tripping current of maximum 30 mA.
• Only charge the product in the included charging station. For safe disposal of the battery, refer to Disposal. Incorrect use may result in electric shock, overheating or leaking of corrosive liquid from the battery. In the event of leakage of electrolyte, flush with water/neutralizing agent. Get medical aid if corrosive liquid comes in your eyes.
• Use only original batteries recommended by Husqvarna. Product safety cannot be guaranteed with other than original batteries. Do not use nonrechargeable batteries.
• Follow the installation instructions that includes to specify the work area, refer to Installation.
• Follow the instructions about to start and operate the product, refer to Operation.
• If there is a risk of thunderstorm, Husqvarna recommends that the power supply and all the wires to the charging station are disconnected to decrease the risk of damage to electrical components. Connect the power supply and all the wires again if there is no longer a risk of thunderstorm. It is important that all wires are connected correctly.
• Follow the maintenance instructions and if necessary use Husqvarna original spare parts, refer to Maintenance.
• For technical data such as weight, dimensions and noise emission values, refer to Technical data.
• The operator is responsible for accidents or dangers that occurs to other persons or property.
• The product must only be operated, maintained and repaired by persons that are fully conversant with its special characteristics and safety regulations.
• It is not permitted to change the initial design of the product.
• Obey national regulations about electrical safety.
• Husqvarna does not guarantee full compatibility between the product and other types of wireless systems such as remote controls, radio transmitters or equivalent.
• The built-in alarm is very loud. Be careful, especially if the product is handled indoors.
• Operation and storage temperature range is 0-50°C / 32-122°F. Temperature range for charging is 0-45°C / 32-113°F. Too high temperatures can cause damage to the product.

Safety instructions for installation

Read the warning instructions that follow before you use the product.

• Do not install the charging station, including any accessory, at a location that is below, or within 60 cm / 24 in. from, any combustible material. In case of malfunction, heating of the charging station and the power supply may occur and create a potential risk of fire.
• Do not put the power supply at a height where there is a risk it can be put in water. Do not put the power supply on the ground.
• Do not encapsulate the power supply. Condensed water can harm the power supply and increase the risk of electrical shock.
• Applicable to USA/Canada. If power supply is installed outdoors: Risk of Electric Shock. Install only to a covered Class A GFCI receptacle (RCD) that has an enclosure that is weatherproof with the attachment plug cap inserted or removed.
• Do not install the charging station where there is a risk of standing water.

Safety instructions for operation

Read the warning instructions that follow before you use the product.

• Keep your hands and feet away from the rotating blades. Do not put your hands or feet near or below the product when it is set to ON.
• Use the park mode or set the product to OFF when persons, especially children or animals are in the work area. Refer to To park the product. Husqvarna recommends to set the product to operate when the work area has no activity. The product can cause injury to animals at night in work area, for example hedgehogs. Refer to To set the schedule.
• Make sure that there are no objects such as stones, branches, tools or toys on the lawn. The blades can be damaged if it hits an object.
• Do not lift the product or move it when it is set to ON.
• Do not to let the product collide with persons or animals. If a person or animal comes in the way of the product, stop the product immediately. Refer to To stop the product.
• Do not put objects on top of the product or its charging station.
• Do not use the product if the STOP button does not work.
• Always set the product to OFF when it is not in operation. The product can only start when you enter the correct PIN code.
• Do not use the product at the same time as a pop-up sprinkler. Use the Schedule function so the product and pop-up sprinkler do not operate at the same time. Refer to To set the schedule.
• Do not let the product operate when there is standing water in the work area. For example when heavy rain forms pools of water.

Safety instructions for maintenance

Read the warning instructions that follow before you do maintenance on the product.

• Set the product to OFF when you do maintenance on the product.
• Do not use a high-pressure washer to clean the product. Do not use solvents to clean the product.
• Disconnect the plug to the charging station before you clean or do maintenance of the charging station.

Battery safety

Read the warning instructions that follow before you use the product.

• Lithium-ion batteries can explode or cause fire if disassembled, short-circuited, exposed to water, fire, or high temperatures. Handle carefully, do not dismantle, open the battery or use any type of electrical/mechanical abuse. Avoid storage in direct sunlight.

To lift and move the product

The product must be set to OFF before you lift the product. The product is disabled when the Main switch is set to the 0 position.

Do not lift the product when it is parked in the charging station. It can cause damage to the charging station and/or the product. Push the STOP button and pull the product out of the charging station before you lift it.

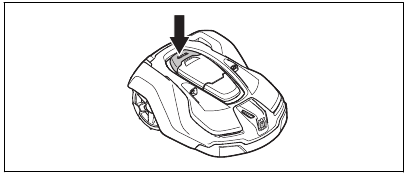

1. Push the STOP button to stop the product.

2. Set the Main switch to the 0 position.

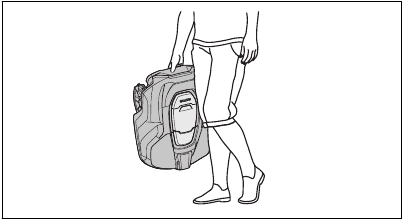

3. Lift the product by the handle with the blade disc away from your body.


Registered trademarks

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, inc. and any use of such marks by Husqvarna is under license.

AUTOMOWER is a trademark owned by Husqvarna AB.
Copyright © 2023 HUSQVARNA. All rights reserved.
www.husqvarna.com

Documents / Resources

References

• Husqvarna Forest & Garden

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Husqvarna AUTOMOWER 430XH, AUTOMOWER 450XH - Residential Robotic Lawn Mower Manual
